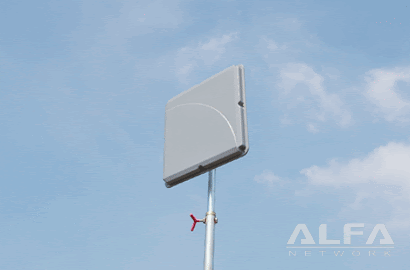

Alfa Network APA-L5814 5.4GHz ~ 5.9GHz Panel Antenna 14dbi 5.0-5.8 GHz Outdoor

Price: RM200 with Free 8 meter cable low loss signal cfd-200

Whatsapp 014-8233461

Mounting Kits & Accessories:




5.8 GHz ISM band, supporting 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a WiFi applications. APA-L5814 includes mounting bracket and hardware for up to 2”OD masts. Made with fiberglass



APA-L5814 is designed for the 5.8 GHz ISM band, supporting 5.1 to 5.9 GHz and provides superb
performance in IEEE 802.11a WiFi applications. APA-L5814 includes mounting bracket
and hardware for up to 2”OD masts. Made with fiberglass

Key features :
- Superior performance
- Light weight
- All weather operation
- Installed for vertical
- DC Short lightning protection
- Includes tilt and swivel mast mount
- RoHS compliant
- Can be installed for either vertical or horizontal polarization
- Frequency Ultra-wide

Application :
- 5.1 – 5.9 GHz ISM Band
- 5.3 GHz Band Applications
- 5.4 GHz Band Applications
- 5.8GHz UNII applications
- IEEE 802.11a Wireless LAN
- Unlicensed European 5.4 GHz Band Applications
- 5.8 GHz Wireless Video Systems
- WiMAX Technology

AWUS052NH

Linux (Latest) Built in Driver ready

013-5943587 Call/Sms Mr. Hizmi

014-8233461 Whatsapp

Quote:

Price: RM170 West Malaysia: RM6 East Malaysia: RM10

Overview

AWUS052NH is a IEEE 802.11a/b/g/n Dual-Band Wireless USB Adapter. It is backwards compatible with IEEE 802.11a/b/g wireless Standard. AWUS052NH has a high-performance, with 802.11n MIMO technology that can deliver impeccable wireless data-rate up to 300Mbps.

AWUS052NH includes an accessible Utility that scans for available networks on the Windows system and saves the preferred networks that users have previously connected with. Security encryption can also be configured by this utility.








Key features

 Compliant with 802.11a/b/g/n Dual-Band standard
 Speed up to 300Mbps
 Advanced Security: 64/128-bits WEP, WPA, WPA2
 Support Windows 2000 / XP / Vista / Win7/Win8, Linux and MAC OSX driver & control utility
 Optional SoftAP that supports on Windows system

Specification

Standards
IEEE 802.11a/b/g/n

Chipset
Ralink RT3572

Operating Frequency
USA: 2.400 ~ 2.483GHz
5.15 ~ 5.35GHz
5.47 ~ 5.725GHz
5.725 ~ 5.825GHz
Europe: 2.400 ~ 2.483GHz
5.15 ~ 5.35GHz
5.47~ 5.725GHz
Japan: 2.400 ~ 2.497GHz
5.15 ~ 5.35GHz
5.47 ~ 5.725GHz
China: 2.400 ~ 2.483GHz
5.725 ~ 5.85GHz

Interface
Mini USB Connector

Antenna Included
2x external dual-band antenna

Data Rate
802.11a: 6, 9, 12, 18, 24, 36, 48,54Mbps
802.11b: 1, 2, 5.5 and 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48,
54Mbps
802.11n: Up to 300Mbps

Operating Voltage
DC 5V 10%

Temperature Operation
0~60
Storage -20 ~ 80

Humidity Operating
15~95% non-condensing

Storage max.
95% non-condensing

Emission Type
DSSS / OFDM

Output Power
30dBm@11bg
28dBm@11n HT20
27dBm@11n HT40
27dBm@11a
25dBm@11an HT20
23dBm@11an HT40

Sensitivity
802.11bg: -95
802.11n HT20: -82
802.11n HT40: -77
802.11a: -95
802.11an HT20: -87
802.11an HT40: -76

Security
WEP 64/128
WPA
WPA-PAK
WPA2
802.1x

Supported OS
Windows 2000
Windows XP
Vista
Windows 7
Windows 8
Linux 2.6 or up
Mac OSX 10.5 up
